8mm Copper Rod Breakdown Machine For Copper Oven Cable Production Line

Product Categories
YUYANG MACHINE Co., Ltd.
Contact Now

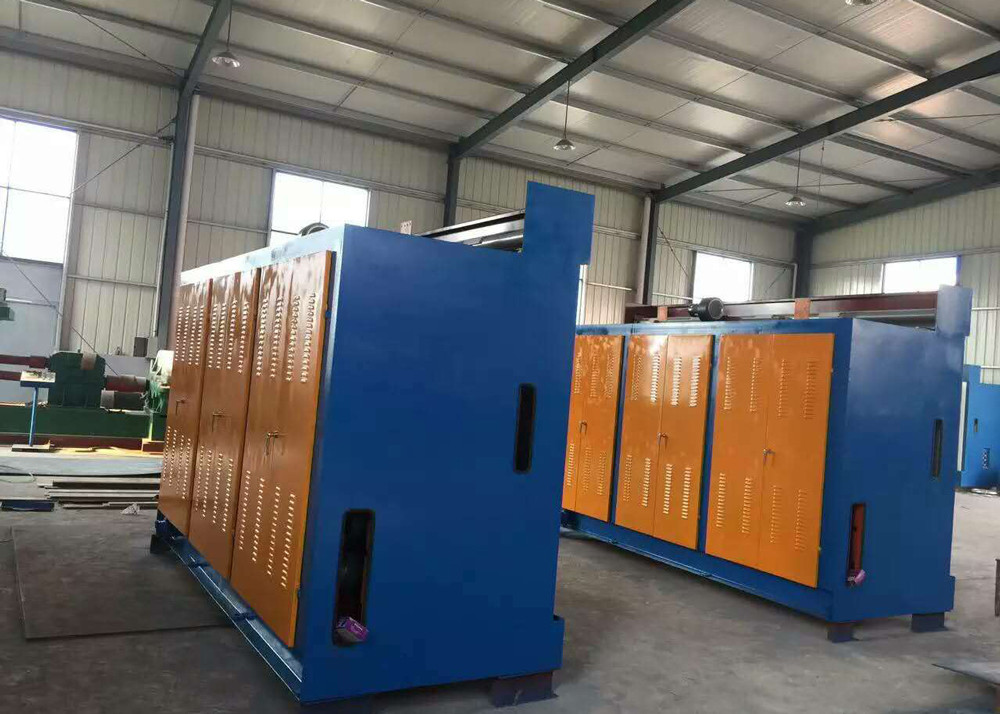

8mm Copper Rod Breakdown Machine For Copper Oven Cable Production Line

  • 1
  • 2
  • 3

Brand Name : yy

Model Number : yy-450

Certification : CE, CCC, CE, ISO

Place of Origin : dongguan,china

MOQ : 1 set

Price : 60,000$-85,0000$

Payment Terms : T/T

Supply Ability : 100 set per yaer

Delivery Time : 50-70 days after advance payment

Packaging Details : 1 set 20 feet container

motor : simens

main power : 95kw

plc : siemens

inlet : 8mm

inverter : yaskawa

take up : double take up

Electricity capacity : 250kva

output : 3-3.5mm

take up bobbin : cage

Contact Now

8mmto 3mm copper wire drawing machine

The production line is highly integrated by uncoiling, leveling, forming, cutting off, punching, receiving and related process.The whole production line is controlled by PCL program.Operators can select a preset program to run the whole line automatically by using touch screen.The methods of operation include automatic control, manual control, separate operation and emergency stop .

Intermediate wire drawing machine:
1:Double inverter auto tension control system
2:Unify 250 cast-iron main frame,precision machinery,no shock
3:Capstan treated with wear-resistan tungsten
4:Suitable for contininuous annealer,take-up machine with and without shaft coiler machine.

Machine type 280/13DH 300/9DH 250/13DH 250/17DH 260/17D-C 260/17D
Max.Inlet Dia.(mm) 3.5
Outlet Dia.(mm) 0.65-2.8 1.2-2.8 0.65-1.6 0.4-1.6 0.4-1.5 0.4-1.2
Max.Die No 13 9 13 17 17 17
Max.Line speed(m/min) 2000 1200 1800 1800 1500 1200
Body structure Ironed cast
Slip ratio of m/c(%) 20 18 20 20 18 18
Fix speed capstan Dia.(mm) 280 300 250 250 260 260
Transmission type By high precision grinding gear By chain
Main motor power 55(45) 37
Take-up motor(kw) 11(15) 11
Lubrication type Full immersion Spray type
Take-up bobbin size(mm) 500/630(bore is 127mm)or changed by requirement
Optional equipment 1.Continuous annealing device
2.Coiler

8mm Copper Rod Breakdown Machine For Copper Oven Cable Production Line8mm Copper Rod Breakdown Machine For Copper Oven Cable Production Line8mm Copper Rod Breakdown Machine For Copper Oven Cable Production Line8mm Copper Rod Breakdown Machine For Copper Oven Cable Production Line8mm Copper Rod Breakdown Machine For Copper Oven Cable Production Line8mm Copper Rod Breakdown Machine For Copper Oven Cable Production Line
